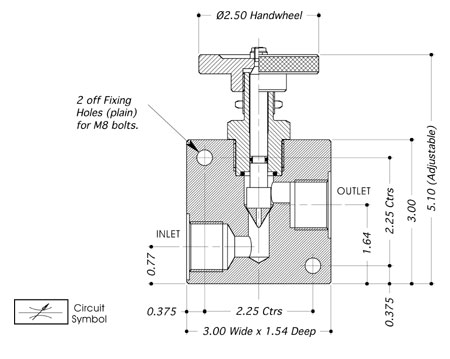

STOP & METERING VALVE (BNV50/75)

3/4" Stainless Steel Stop (Shut-Off) Valve for pressures up to 10,000 psi with liquids and 6,000 psi with gas.

2:2 Product Catalogue Page

Technical Specification
Valve Type:	BNV50/75
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper) C = Cartridge
Soft Seated Valve:	G
Max. Working Pressure: Liquid :	10,000 psi (Hard Seat)
Max. Working Pressure: Liquid/Gas :	6,000 psi (Soft Seat)
Port Size:	3/4"
Valve Seat Mat'l: Hard Seat :	Stainless Steel - 431/1.4057
Valve Seat Mat'l: Soft Seat :	Torlon
Seal Material:	Viton (other materials available by request)
CV Value:	2.1
Dry Weight: (kg) :	1.75
Working Temperature Range:	-10°C to +120°C

Derivative options available
	BNV50/75N-10K STOP & METERING VALVE (BNV50/75) BNV50: 1/2" 316 St.St. Stop Valve, 75N: 3/4" NPT female ports, 10K: M.W.P. 10,000 psi liquid, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
	BNV50/75N-G-6K STOP & METERING VALVE (BNV50/75) BNV50: 1/2" 316 St.St. Stop Valve, 75N: 3/4" NPT female ports, G: Soft seated valve, 6K: M.W.P. 6,000 psi Liquid or Gas, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	BNV50/75P-10K STOP & METERING VALVE (BNV50/75) BNV50: 1/2" 316 St.St. Stop Valve, 75P: 3/4" BSPP female ports, 10K: M.W.P. 10,000 psi liquid, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
	BNV50/75P-G-6K STOP & METERING VALVE (BNV50/75) BNV50: 1/2" 316 St.St. Stop Valve, 75P: 3/4" BSPP female ports, G: Soft seated valve, 6K: M.W.P. 6,000 psi Liquid or Gas, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
