STOP & METERING VALVE (BNV44AE)
The BNV44AE is a 1/4” OD tube medium pressure ported stop valve. It provides tight shut-off when closed via the T-bar handle.
The elastomeric stem seal design allows long term use without the need to adjust seal packings in service. Combined with a minimised backlash design, the valve is particularly
suited to pressure testing and other applications where reliable operation is essential.
Please contact our Sales department +44 (0)1202 896322

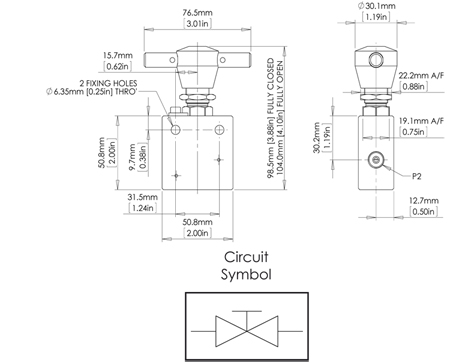

For full dimensional information click link to Download PDF Datasheet
- Manual stop or shut-off valve
- Suitable for uni-directional or bi-directional shut-off
- Industry standard port and mounting configurations
- Non-rotating valve stem protects valve seat
- Free running, anti-galling handle assembly
- Minimised backlash provides greater operator control
- Metal to metal seating with hardened stem for durability
- Panel mountable and lockable adjustment
- Suitable for use with mineral oils, water glycols and plain water
- Compatible with many other media, contact us for advice
- All wetted parts comply with NACE MR01-75
Download PDF
| Working Media: (std) : | Liquids only |
|---|---|
| Valve Type: | BNV44AE |
| Porting/Connection Options: | 01: 2-way straight - 02: 2-way angle - 03: 3-way (2 inlets) - 04: 3-way (2 outlets) - 05: 3-way, 2 stem, block-and-bleed |
| Max. Working Pressure: | 1,379 bar (20,000 psi) |
| Port Size: | 1/4” OD medium pressure |
| CV Value: | Up to 0.19 |
| Dry Weight: (kg) : | 0.7 kg (1.5 lb) |
| Working Temperature Range: | -45˚C to +120˚C |
| Seal Material: | Viton® - EPDM - Kalrez - Nitrile - Hydrogenated Nitrile |
