STOP & METERING VALVE (BNV25-TB)
The BNV25-TB is a 1/4” nominal bore stop valve. It provides tight shut-off when closed via a T-bar handle.
Coarse adjustment allows fast operation. For uni-directional service, the valve is marked with a preferred direction of flow, but the valve may be used with the same functionality in the opposite direction.
Please contact our Sales department +44 (0)1202 896322

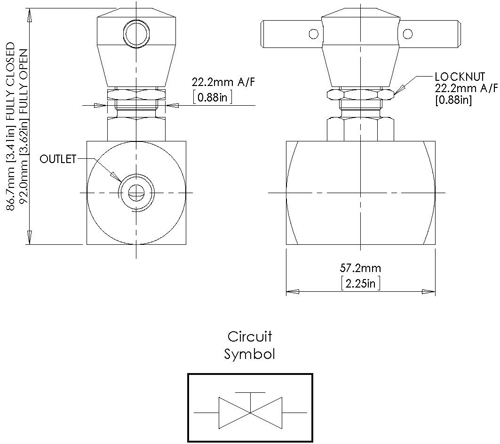

For full dimensional information click link to Download PDF Datasheet
- Manual stop or shut-off valve
- Lockable adjustment
- Panel mount option
- Non-rotating valve stem protects valve seat
- Suitable for uni-directional or bi-directional shut-off
- Stainless steel construction
- Suitable for use with mineral oils, water glycols and plain water
- Compatible with many other media, contact us for advice
- All wetted parts comply with NACE MR01-75
- Various porting options available, including manifold mount and cartridge installation options
- Various seal options available
Download PDF
| Valve Type: | BNV25-TB |
|---|---|
| Porting/Connection Options: | P 1/4” BSPP female - N 1/4” NPT female - /37P 3/8” BSPP female - /37N 3/8” NPT female - M Manifold mount - C Cartridge style Seat in cavity - FC Full cartridge Seat in cartridge |
| Max. Working Pressure: | 862 bar (12,500 psi) |
| Port Size: | 1/4” or 3/8” |
| CV Value: | Up to 0.75 |
| Dry Weight: (kg) : | PORTED 0.79 kg (1.73 lb) - C 0.23 kg (0.50 lb) - FC 0.48 kg (1.05 lb) |
| Working Temperature Range: | -45˚c to +120˚c |
| Seal Material: | Viton® - EPDM - Kalrez - Nitrile - Hydrogenated Nitrile |
| Working Media: (std) : | Liquids only |
