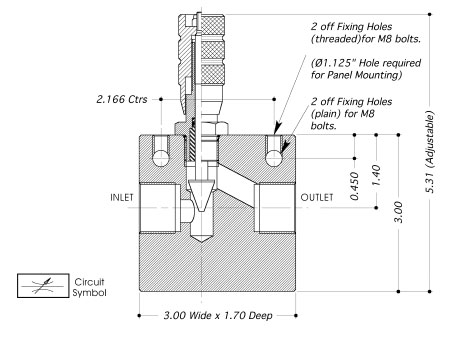

1/2" Stainless Steel Inline Fine Flow Metering Valve for pressures up to 8,000 psi with liquid and 4,000 psi with gas.
Valve Type: | MF50 |
---|---|
Porting/Connection Options: | P = BSP (Parallel) N = NPT (Taper) |
Max. Working Pressure: Liquid : | 8,000 psi |
Max. Working Pressure: Liquid/Gas : | 4,000 psi |
Port Size: | 1/2" |
Valve Seat Material: | Stainless Steel - 17-4/1.4542 |
Seal Material: | Viton (other materials available by request) |
CV Value: | 1.4 |
Dry Weight: (kg) : | 1.8 |
Working Temperature Range: | -10°C to +120°C |
