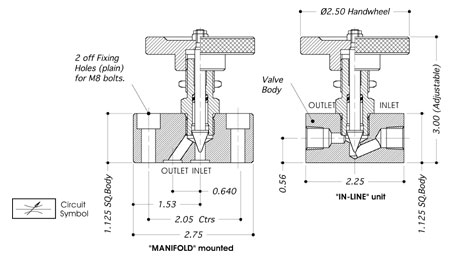

STOP & METERING VALVE (BNV25/37)

3/8" Stainless Steel Stop (Shut-Off) Valve for pressures up to 10,000 psi with liquids and 6,000 psi with gas.

2:1 Product Catalogue Page

Technical Specification
Valve Type:	BNV25/37
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper) M
Soft Seated Valve:	G
Max. Working Pressure: Liquid :	10,000 psi (Hard Seat)
Max. Working Pressure: Liquid/Gas :	6,000 psi (Soft Seat)
Port Size:	3/8"
Valve Seat Mat'l: Hard Seat :	Stainless Steel - 17-4/1.4542
Valve Seat Mat'l: Soft Seat :	Torlon
Seal Material:	Viton (other materials available by request)
CV Value:	0.52
Dry Weight: (kg) :	0.75
Working Temperature Range:	-10°C to +120°C

Derivative options available
	BNV25/37N-10K STOP & METERING VALVE (BNV25/37) BNV25: 3/8" 17-4 St.St. Stop Valve, 37N: 3/8" NPT female ports, 10K: M.W.P. 10,000 psi Liquid , Handwheel operated, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
	BNV25/37N-G-6K STOP & METERING VALVE (BNV25/37) BNV25: 3/8" 17-4 St.St. Stop Valve, 37N: 3/8" NPT female ports, G: Soft seated valve, 6K: M.W.P. 6,000 psi Liquid or Gas, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	BNV25/37P-10K STOP & METERING VALVE (BNV25/37) BNV25: 3/8" 17-4 St.St. Stop Valve, 37P: 3/8" BSPP female ports , 10K: M.W.P. 10,000 psi Liquid, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
	BNV25/37P-G-6K STOP & METERING VALVE (BNV25/37) BNV25: 3/8" 17-4 St.St. Stop Valve, 37P: 3/8" BSPP female ports , G: Soft seated valve, 6K: M.W.P. 6,000 psi Liquid or Gas, Handwheel operated, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
