STOP & METERING VALVE (BNV10FC)
The BNV10FC is a cartridge style stop valve. It provides tight shut-off when closed via a T-bar handle.
Coarse adjustment allows fast operation. The valve may be used with the same functionality in either direction.
Please contact our Sales department +44 (0)1202 896322

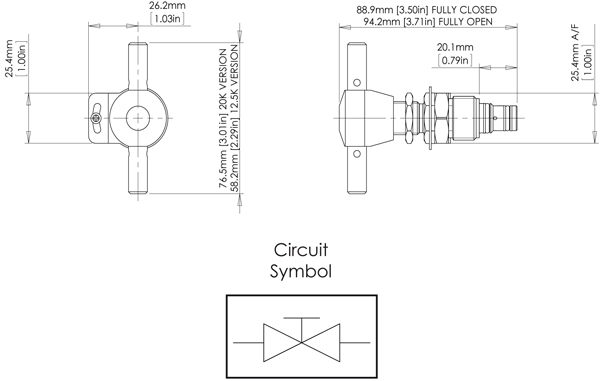

For full dimensional information click link to Download PDF Datasheet
- Manual stop or shut-off valve
- Lockable adjustment
- Cartridge style ideal for use in manifolds
- Non-rotating valve stem protects valve seat
- Metal to metal seating with hardened stem for durability
- Suitable for uni-directional or bi-directional shut-off
- Short handle option for pressures up to 862 bar (12,500psi) allows compact system designs
- Stainless steel construction
- Suitable for use with mineral oils, water glycols and plain water
- Compatible with many other media, contact us for advice
- Various seal options available
Download PDF
| Valve Type: | BNV10FC |
|---|---|
| Porting/Connection Options: | FC = Full cartridge Seat |
| Max. Working Pressure: | 1,379 bar (20,000 psi) |
| Port Size: | 1/8” |
| CV Value: | Up to 0.20 |
| Dry Weight: (kg) : | 0.29 kg (0.64 lb) |
| Seal Material: | Viton® - EPDM - Kalrez - Nitrile - Hydrogenated Nitrile |
| Working Temperature Range: | -45˚C to +120˚C |
| Working Media: (std) : | Liquids only |
