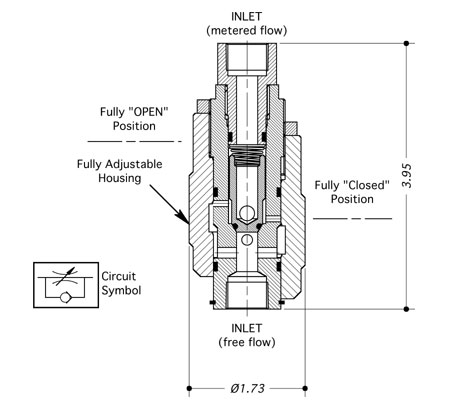

METERING VALVE (IMC37)

3/8" Stainless Steel Inline Metering Valve with Reverse Free Flow Check for pressures up to 8,000 psi.

2:7 Product Catalogue Page

Technical Specification
Valve Type:	IMC37
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid :	8,000 psi
Port Size:	3/8"
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value: (MAX) :	0.72
Dry Weight: (kg) :	0.73
Working Temperature Range:	-10°C to +120°C

Derivative options available
	IMC37N-8K METERING VALVE (IMC37) IMC37: 3/8" 316 St.St. In-line Metering , Flow control valve, Complete with Reverse free flow check, N: 3/8" NPT female ports, 8K: M.W.P. 8,000 psi Liquid, Maximum metered flow: Cv = 0.72, Free flow : Cv = 1.3, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
	IMC37P-8K METERING VALVE (IMC37) IMC37: 3/8" 316 St.St. In-line Metering , Flow control valve, Complete with Reverse free flow check, P: 3/8" BSPP female ports, 8K: M.W.P. 8,000 psi Liquid, Maximum metered flow: Cv = 0.72, Free flow : Cv = 1.3, Viton seals: -10°C to +120°C, Suitable for liquid use only.	QTY RQD:
