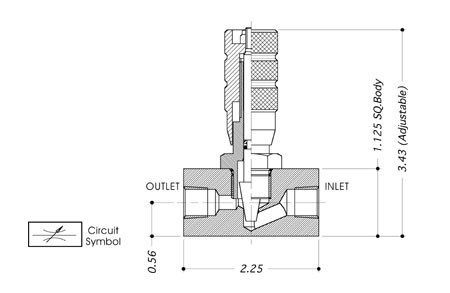

FINE FLOW METERING VALVE (MF25)

1/4" Stainless Steel Inline Fine Flow Metering Valve for pressures up to 8,000 psi with liquid and 4,000 psi with gas.

2:3 Product Catalogue Page

Technical Specification
Valve Type:	MF25
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid :	8,000 psi
Max. Working Pressure: Liquid/Gas :	4,000 psi
Port Size:	1/4"
Valve Seat Material:	Stainless Steel - 431/1.4057
Seal Material:	Viton (other materials available by request)
CV Value:	0.64
Dry Weight: (kg) :	1
Working Temperature Range:	-10°C to +120°C

Derivative options available
	MF25N-8K FINE FLOW METERING VALVE (MF25) MF25: 1/4" 316 St. St. Metering Flow , Control Valve, N: 1/4" NPT female ports, 8K: M.W.P. 8,000 psi Liquid 4,000 psi Gas, Micrometer style adjustment, Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	MF25P-8K FINE FLOW METERING VALVE (MF25) MF25: 1/4" 316 St.St. Metering Flow, Control Valve, P: 1/4" BSPP female ports, 8K: M.W.P. 8,000 psi Liquid 4,000 psi Gas, Micrometer style adjustment , Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
