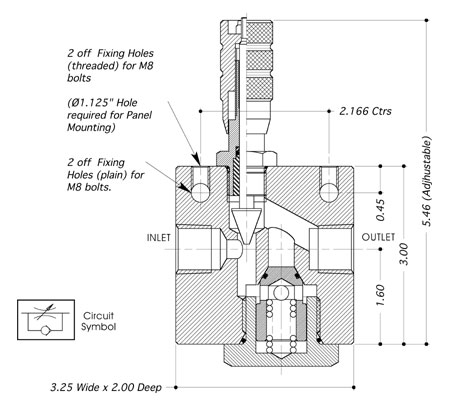

FINE FLOW METERING VALVE (CMF75)

3/4" Stainless Steel Fine Flow Metering Valve with Reverse Free Flow Check for pressures up to 6,000 psi with liquid and 3,000 psi with gas.

2:6 Product Catalogue Page

Technical Specification
Valve Type:	CMF75
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid :	6,000 psi
Max. Working Pressure: Liquid/Gas :	3,000 psi
Port Size:	3/4"
Valve Seat Material:	Stainless Steel - 17-4/1.4542
Seal Material:	Viton (other materials available by request)
CV Value:	2.5
Dry Weight: (kg) :	2
Working Temperature Range:	-10°C to +120°C

Derivative options available
	CMF75N-6K FINE FLOW METERING VALVE (CMF75) CMF75: 3/4" 316 St.St. Metering Flow , Control Valve, Complete with Reverse free flow check, N: 3/4" NPT female ports, 6K: M.W.P. 6,000 psi Liquid 3,000 psi Gas, Micrometer style adjustment , Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	CMF75P-6K FINE FLOW METERING VALVE (CMF75) CMF75: 3/4" 316 St.St. Metering Flow, Control Valve, Complete with Reverse free flow check, P: 3/4" BSPP female ports, 6K: M.W.P. 6,000 psi Liquid 3,000 psi Gas, Micrometer style adjustment , Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
