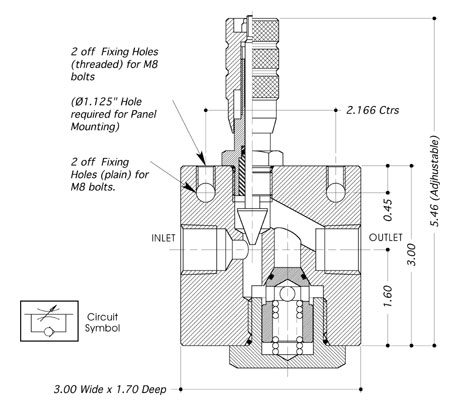

FINE FLOW METERING VALVE (CMF50)

1/2" Stainless Steel Fine Flow Metering Valve with Reverse Free Flow Check for pressures up to 6,000 psi with liquid and 3,000 psi with gas.

2:6 Product Catalogue Page

Technical Specification
Valve Type:	CMF50
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid :	6,000 psi
Max. Working Pressure: Liquid/Gas :	3,000 psi
Port Size:	1/2"
Valve Seat Material:	Stainless Steel - 17-4/1.4542
Seal Material:	Viton (other materials available by request)
CV Value:	1.4
Dry Weight: (kg) :	2
Working Temperature Range:	-10°C to +120°C

Derivative options available
	CMF50N-6K FINE FLOW METERING VALVE (CMF50) CMF50: 1/2" 316 St.St. Metering Flow, Control Valve, Complete with Reverse free flow check, N: 1/2" NPT female ports, 6K: M.W.P. 6,000 psi Liquid 3,000 psi Gas, Micrometer style adjustment , Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	CMF50P-6K FINE FLOW METERING VALVE (CMF50) CMF50: 1/2" 316 St.St. Metering Flow, Control Valve, Complete with Reverse free flow check, P: 1/2" BSPP female ports, 6K: M.W.P. 6,000 psi Liquid 3,000 psi Gas, Micrometer style adjustment , Engraved with single turn divisions, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
