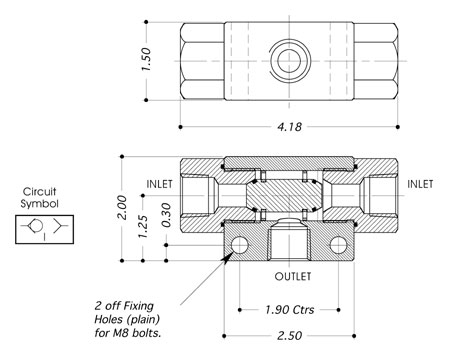

SHUTTLE VALVE (SV50/37)

3/8" Stainless Steel Shuttle Valve for pressures up to 8,000 psi with liquid and 4,000 psi with gas.

5:5 Product Catalogue Page

Technical Specification
Valve Type:	SV50/37
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper) M = Manifold
Max. Working Pressure: Liquid :	8,000 psi
Max. Working Pressure : Gas :	4,000 psi
Port Size:	3/8"
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	2.52
Dry Weight: (kg) :	1.2
Working Temperature Range:	-10°C to +120°C

Derivative options available
	SV50/37N-8K SHUTTLE VALVE (SV50/37) SV50/37: 3/8" 316 St.St. Shuttle Valve, N: 3/8" NPT female ports, 8K: M.W.P. 8,000 psi Liquid 4,000 psi Gas, Viton seals: -10°C to +160°C, Suitable for use with liquid or gas.	QTY RQD:
	SV50/37P-8K SHUTTLE VALVE (SV50/37) SV50/37: 3/8" 316 St.St. Shuttle Valve, P: 3/8" BSPP female ports, 8K: M.W.P. 8,000 psi Liquid 4,000 psi Gas, Viton seals: -10°C to +160°C, Suitable for use with liquid or gas.	QTY RQD:
