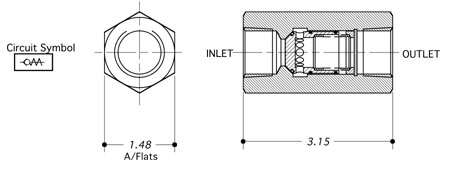

3/4" Stainless Steel Check Valve for pressures up to 9,000 psi with liquid and 3,500 psi with gas.
Valve Type: | C75 |
---|---|
Porting/Connection Options: | P = BSP (Parallel) N = NPT (Taper) |
Max. Working Pressure: Liquid : | 9K psi |
Max. Working Pressure : Gas : | 3,5K psi |
Port Size: | 3/4" |
Valve Seat Material: | Stainless Steel - 316/1.4404 |
Seal Material: | Viton (other materials available by request) |
CV Value: | 3.5 |
Dry Weight: (kg) : | 0.55 |
Working Temperature Range: | -10°C to +120°C |
Cracking Pressure: | 2.0 - 5.0 psi (0.75 psi without spring fitted) |
Valve Orifice Size (sq. ins.) : | 0.25 |
