SOLENOID THRUSTER (STEX1)

Stainless Steel ATEX Approved Flameproof EEX'D' Hazardous Area Solenoid Thruster for use with various solenoid valve types.

12:11 Product Catalogue Page

Technical Specification
Solenoid Type:	STEX1

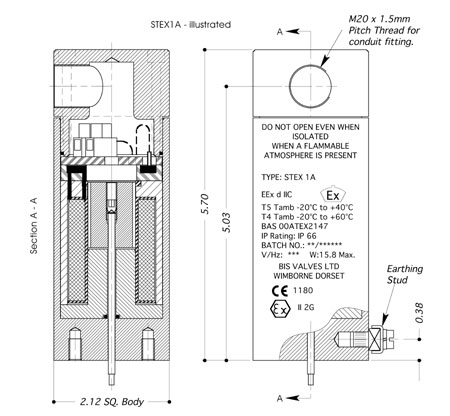

Conduit Connection:	A - Radial Exit as shown
Voltage Rating:	24V (for other voltages contact our technical department)
Power Rating:	15.8 Watts MAX
IP Rating:	IP 66
Dry Weight: (kg) :	2.8
Working Temperature Range:	T5 @ -10°C to +40°C Ambients, T4 @ -10°C to +60°C Ambients
Solenoid Type:	STEX1
Conduit Connection:	B - Axial Exit
Voltage Rating:	24V (for other voltages contact our technical department)
Power Rating:	15.8 Watts MAX
IP Rating:	IP 66
Dry Weight: (kg) :	2.8
Working Temperature Range:	T5 @ -10°C to +40°C Ambients, T4 @ -10°C to +60°C Ambients
