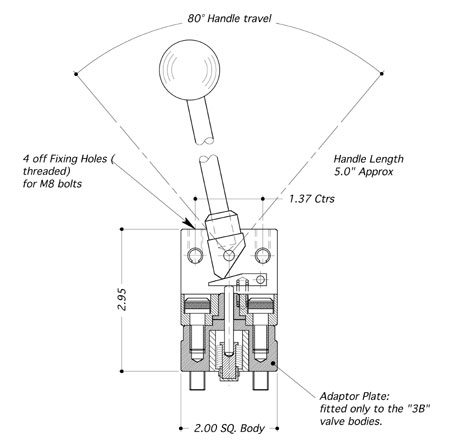

MANUAL LEVER ACTUATOR (DL)
Stainless Steel Non-Detented "Deadmans" Lever Actuator for use with various actuated valve types.
STAINLESS STEEL (316 / 1.4404)
12:8
Product Catalogue Page
Download PDF
Technical Specification
Actuator Type:
DL
Type "L" :
Lever returns to centre position after operating
Dry Weight: (kg) :
1.5
Working Temperature Range:
-10°C to +120°C
Derivative options available
