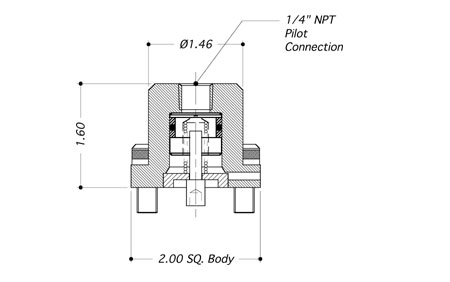

PISTON HYDRAULIC ACTUATOR (H0)
Stainless Steel Piston Style Hydraulic Actuator for use with various actuated valve types.
| Actuator Type: | H0 |
|---|---|
| Pilot Port Size: | 1/4" |
| Thread Form: (Pilot supply) : | NPT (Taper) |
| Maximum Pilot Pressure:* | 10,000 psi |
| Seal Material: | Viton |
| Dry Weight: (kg) : | 0.5 |
| Working Temperature Range: | -10°C to +120°C |
