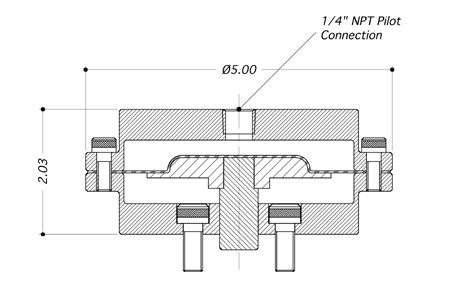

DIAPHRAGM AIR ACTUATOR (A2)

Stainless Steel Diaphragm Style Pneumatic Actuator for use with various actuated valve types.

12:2 Product Catalogue Page

Technical Specification
Actuator Type:	A2
Pilot Port Size:	1/4"
Thread Form: (Pilot supply) :	NPT (Taper)
Maximum Pilot Pressure:*	150 psi
Diaphragm Material:	Nitrile (with Nylon fabric reinforcement)
Dry Weight: (kg) :	0.5
Working Temperature Range:	-10°C to +80°C
