The 2/3AS25 is a 2 position 3 way direct acting stainless steel solenoid valve for pressures to 16 bar with gas and also liquid.
This versatile valve utilises a balanced design enabling it to be used in normally closed, normally open and selector configurations, and is an ideal choice for low pressure pneumatic switching applications.
A wide variety of low wattage solenoid thrusters are available, including ATEX and IECEx approved coils for use in hazardous areas and numerous electrical connections. Override and reset options provide additional functionality for systems where the ability for manual intervention is required.
Please contact our Sales department +44 (0)1202 896322

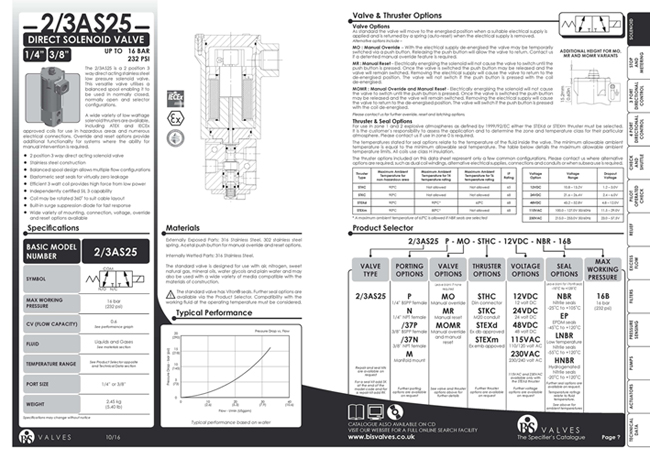

For full dimensional information click link to Download PDF Datasheet
