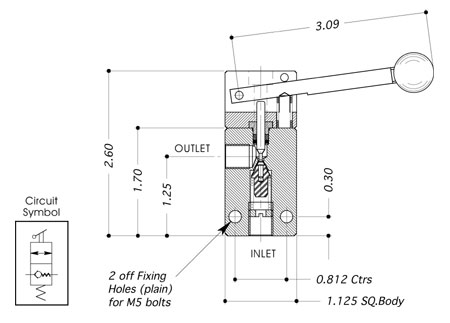

MIDGET LEVER OPERATED CHECK VALVE (SVT12)

1/8" Stainless Steel Lever Operated Check Valve for pressures up to 2,000 psi.

6:9 Product Catalogue Page

Technical Specification
Valve Type:	SVT12
Porting/Connection Options:	P = BSP (Parallel)
Max. Working Pressure: Liquid/Gas :	2,000 psi
Port Size: (Valve Body) :	1/8"
Valve Seat Mat'l: Liquid/Gas :	Stainless Steel - 431/1.4057
Seal Material:	Viton (other materials available by request)
CV Value:	0.15
Dry Weight: (kg) :	1.2
Working Temperature Range:	-10°C to +120°C

Derivative options available
	SVT12P-2K MIDGET LEVER OPERATED CHECK VALVE (SVT12) SVT12: 1/8" 316-St.St. 2/2 Lever operated check valve, P: 1/8" BSPP female ports, 2K: M.W.P.2,000 psi, Main plunger seal: PTFE, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
