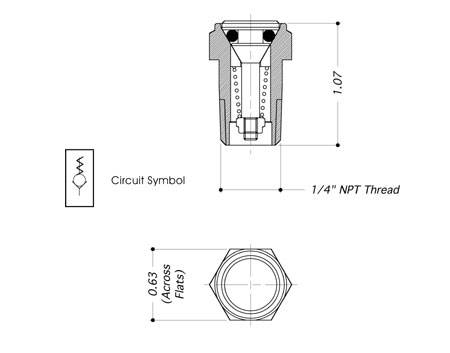

VENTING CHECK VALVE (CV25)

Stainless Steel Vent to Atmosphere Style Cartridge Check Valve.

5:7 Product Catalogue Page

Technical Specification
Valve Type:	CV25
Porting/Connection Options:	N = NPT (Taper)
Cracking Pressure:	0.5B (8 psi) 0.8B (12 psi)
Port Size:	1/4"
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
Dry Weight: (kg) :	0.1
Working Temperature Range:	-10°C to +120°C

Derivative options available
	CV25N-0.5B VENTING CHECK VALVE (CV25) CV25:1/4" 316 St.St. Venting Check Valve, N: 1/4" NPT male inlet port, Outlet port vents to atmosphere, 0.5B: 8 psi cracking pressure, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	CV25N-0.8B VENTING CHECK VALVE (CV25) CV25:1/4" 316 St.St. Venting Check Valve, N: 1/4" NPT male inlet port, Outlet port vents to atmosphere, 0.8B: 12 psi cracking pressure, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
