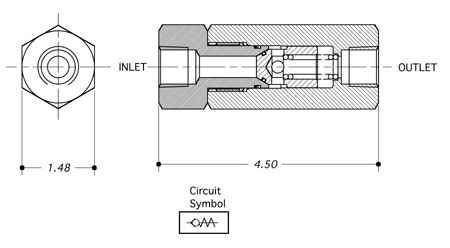

CHECK VALVE (NR50-20K)

1/2" Stainless Steel Check Valve for pressures up to 20,000 psi with liquid and 10,000 psi with gas.

5:3 Product Catalogue Page

Technical Specification
Valve Type:	NR50
Porting/Connection Options:	56AE (for 3/8" O.D. Tube)
Max. Working Pressure: Liquid :	20,000 psi
Max. Working Pressure : Gas :	10,000 psi
Pipe Size:	3/8" O.D. Tube
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	2.2
Dry Weight: (kg) :	1
Working Temperature Range:	-10°C to +120°C
Cracking Pressure:	2.0 - 5.0 psi

Derivative options available
	NR50-56AE-20K CHECK VALVE (NR50-20K) NR50: 1/2" 316 St. St. Check Valve, 56AE: 3/8" Autoclave female inlet and , outlet (9/16 - 18), 20K: M.W.P. 20,000 psi Liquid 10,000 psi Gas, Opening pressure: 2 - 5 psi, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
