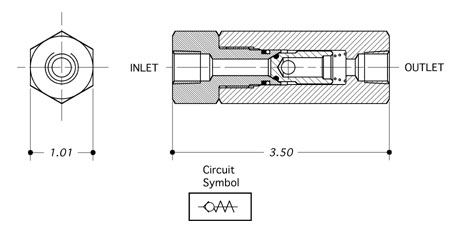

CHECK VALVE (NR25-20K)

1/4" Stainless Steel Check Valve for pressures up to 20,000 psi with liquid and 10,000 psi with gas.

5:3 Product Catalogue Page

Technical Specification
Valve Type:	NR25
Porting/Connection Options:	44AE (for 1/4" O.D. Tube)
Max. Working Pressure: Liquid :	20,000 psi
Max. Working Pressure : Gas :	10,000 psi
Pipe Size:	1/4" O.D. Tube
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	0.7
Dry Weight: (kg) :	0.35
Working Temperature Range:	-10°C to +120°C
Cracking Pressure:	2.0 - 5.0 psi

Derivative options available
	NR25-44AE-20K CHECK VALVE (NR25-20K) NR25: 1/4" 316 St. St. Check Valve, 44AE:1/4" Autoclave female inlet and , outlet (7/16 - 20), 20K: MWP 20,000 psi (liquid) 10,000 psi, (gas), Opening pressure : 2 - 5 psi., Viton seals: -10 to +120°C, Suitable for use with liquid or gas.	QTY RQD:
