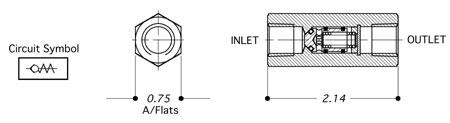

CHECK VALVE (C25)

1/4" Stainless Steel Check Valve for pressures up to 9,000 psi with liquid and 3,500 psi with gas.

5:1 Product Catalogue Page

Technical Specification
Valve Type:	C25
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid :	9K psi
Max. Working Pressure : Gas :	3,5K psi
Port Size:	1/4"
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	0.7
Dry Weight: (kg) :	0.1
Working Temperature Range:	-10°C to +120°C
Cracking Pressure:	2.0 - 5.0 psi (0.75 psi without spring fitted)
Valve Orifice Size (sq. ins.) :	0.034

Derivative options available
	C25N-9K CHECK VALVE (C25) C25: 1/4" 316 St. St. Check Valve, N: 1/4" NPT female ports, 9K: M.W.P. 9,000 psi Liquid 3,500 psi Gas, Opening pressure: 2 - 5 psi, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
	C25P-9K CHECK VALVE (C25) C25: 1/4" 316 St. St. Check Valve , P: 1/4" BSPP female ports, Opening pressure: 2 - 5 psi, 9K: M.W.P. 9,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +120°C, Suitable for use with liquid or gas.	QTY RQD:
