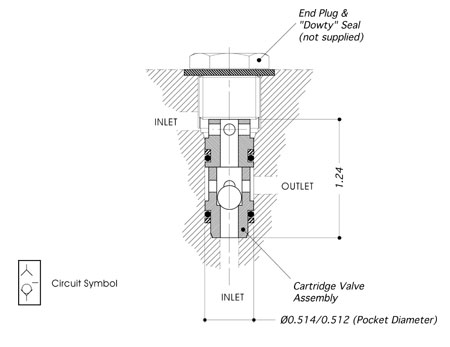

CARTRIDGE SHUTTLE VALVE (SV25C)

1/4" Stainless Steel Cartridge Style Shuttle Valve for pressures up to 4,000 psi.

5:9 Product Catalogue Page

Technical Specification
Valve Type:	SV25C
Max. Working Pressure: Liquid :	4,000 psi
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	0.33
Dry Weight: (kg) :	0.03
Working Temperature Range:	-10°C to +120°C

Derivative options available
	SV25C-4K CARTRIDGE SHUTTLE VALVE (SV25C) SV25: 1/4" 316 St. St. Cartridge Shuttle , Valve, C: Cartridge Valve, 4K: M.W.P. 4,000 psi Liquid, Viton seals: -10°C to +160°C, Suitable for liquid use only.	QTY RQD:
