CARTRIDGE CHECK VALVE (CC75)

3/4" Stainless Steel Cartridge Check Valve for use in hydraulic manifolds for pressures up to 10,000 psi with liquid and 5,000 psi with gas.

5:6 Product Catalogue Page

Technical Specification
Valve Type:	CC75
Max. Working Pressure: Liquid :	10,000 psi
Max. Working Pressure : Gas :	5,000 psi
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	3.5
Dry Weight: (kg) :	1
Working Temperature Range:	-10°C to +120°C
Cracking Pressure:	3 - 7 psi

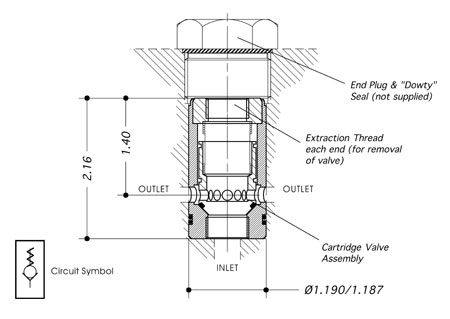

Pocket Diameter (ins):	Ø1.190/1.187
Extraction Thread (each end):	3/8"BSP
End Plug Pocket Thread:	1"BSP

Derivative options available
	CC75-10K CARTRIDGE CHECK VALVE (CC75) CC75: 3/4" 316 St. St. Cartridge Check , Valve, 10K: M.W.P 10,000 psi Liquid 5,000 psi , Gas, Viton seals: -10°C to +120°C, Note:- Valves are non-serviceable., Suitable for use with liquid or gas.	QTY RQD:
