CARTRIDGE CHECK VALVE (CC37)

3/8" Stainless Steel Cartridge Check Valve for use in hydraulic manifolds for pressures up to 10,000 psi with liquid and 5,000 psi with gas.

5:6 Product Catalogue Page

Technical Specification
Valve Type:	CC37
Max. Working Pressure: Liquid :	10,000 psi
Max. Working Pressure : Gas :	5,000 psi
Valve Seat Material:	Stainless Steel - 316/1.4404
Seal Material:	Viton (other materials available by request)
CV Value:	1.3
Dry Weight: (kg) :	0.05
Working Temperature Range:	-10°C to +120°C
Cracking Pressure:	3 - 7 psi

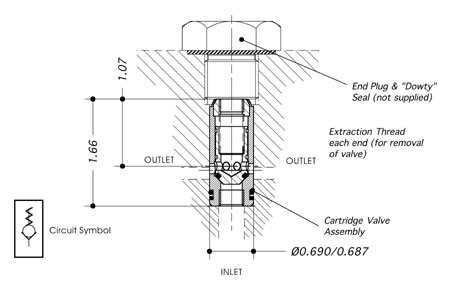

Pocket Diameter (ins):	Ø0.690/0.687
Extraction Thread (each end):	1/8"BSP
End Plug Pocket Thread:	1/2"BSP

Derivative options available
	CC37-10K CARTRIDGE CHECK VALVE (CC37) CC37: 3/8" 316 St. St. Cartridge Check , Valve, 10K: MWP 10,000 psi liquid 5,000 psi gas, , Viton seals: -10°C to +120°C, Note:- Valves are non-serviceable., Suitable for use with liquid or gas.	QTY RQD:
