The BNV25-G is a 1/4” nominal bore stop valve. It provides tight shut-off when closed via the knurled handwheel and is soft seated allowing use with liquid or gas.
Coarse adjustment allows fast operation. The valve is designed for uni-directional service only.
Please contact our Sales department +44 (0)1202 896322

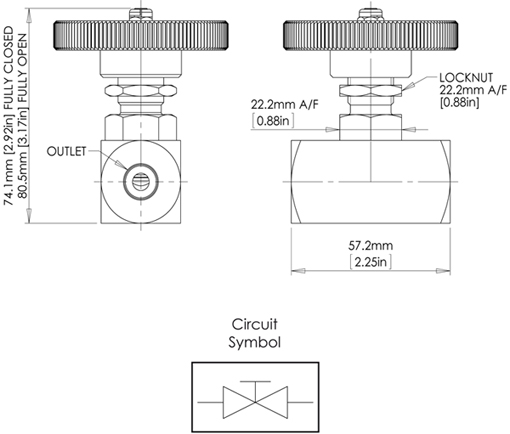

For full dimensional information click link to Download PDF Datasheet
Working Media: (std) : | Liquids and Gases |
---|---|
Valve Type: | BNV25-G |
Porting/Connection Options: | P: 1/4” BSPP female - N: 1/4” NPT female - /37P 3/8” BSPP female - /37N 3/8” NPT female - M: Manifold mount - C: Cartridge style Seat in cavity - FC: Full cartridge Seat in cartridge |
Soft Seated Valve: | G |
Max. Working Pressure: | 414 bar (6,000 psi) |
Port Size: | 1/4” or 3/8” |
CV Value: | Up to 0.52 |
Dry Weight: (kg) : | PORTED: 0.65 kg (1.43 lb) - C 0.35 kg (0.77 lb) - FC 0.50 kg (1.10 lb) |
Working Temperature Range: | -45˚C to +120˚C |
Valve Seat Mat'l: Soft Seat : | Material: Soft Seat Torlon |
Seal Material: | Viton® - EPDM - Kalrez - Nitrile - Hydrogenated Nitrile |
