The SV50 is a 1/2” nominal bore shuttle valve. The valve will sense the higher of two pressures and send this pressure to the outlet port.
The valve uses sealed poppet technology to give virtually zero leakage with liquids and gases.
Please contact our Sales department +44 (0)1202 896322

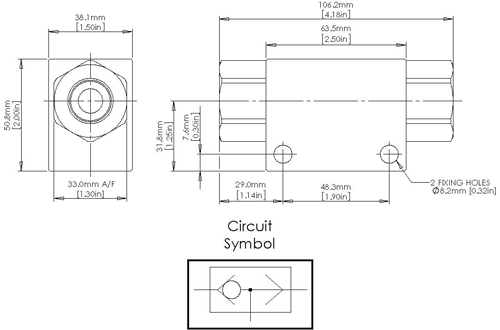

For full dimensional information click link to Download PDF Datasheet
Valve Type: | SV50 |
---|---|
Max. Working Pressure: | 4,000 psi |
Valve Seat Material: | Stainless Steel - 316/1.4404 |
Connections | /25P 1/4" BSPP female - /25N 1/4" NPT female - /37P 3/8" BSPP female - /37N 3/8" female - /50P 1/2" BSPP female - /50N 1/2" NPT female |
Port Size: | 1/4" - 1/2" - 3/8" |
CV Value: | SV50/25 - 1.26 / SV50/37 - 2.52 / SV50/50 - 3.11 |
Dry Weight: (kg) : | 1.1 kg (2.4 lb) |
Working Temperature Range: | -10°C to +120°C |
Seal Material: | Viton® - EPDM - Kalrez® - Nitrile - Hydrogenated Nitrile |
Working Media: (std) : | Liquids and Gases |
