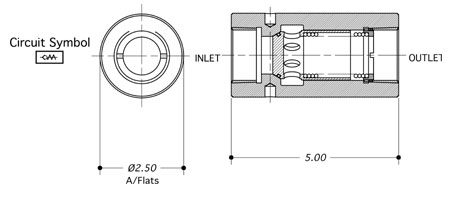

1.1/4" Stainless Steel Check Valve for pressures up to 7,000 psi with liquid and 3,500 psi with gas.
Valve Type: | C125 |
---|---|
Porting/Connection Options: | P = BSP (Parallel) N = NPT (Taper) |
Max. Working Pressure: Liquid : | 7K psi |
Max. Working Pressure : Gas : | 3,5K psi |
Port Size: | 1.1/4" |
Valve Seat Material: | Stainless Steel - 316/1.4404 |
Seal Material: | Viton (other materials available by request) |
CV Value: | 18.9 |
Dry Weight: (kg) : | 1.8 |
Working Temperature Range: | -10°C to +120°C |
Cracking Pressure: | 2.0 - 5.0 psi (0.75 psi without spring fitted) |
