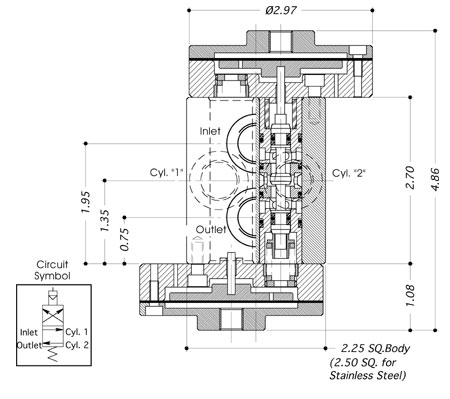

DIRECTIONAL CONTROL VALVE (6B37-A3-G)

3/8" 2 Position 4 Port Soft Seated Directional Control Valve with Pneumatic or Low Pressure Hydraulic Pilot Actuation for pressures up to 6,000 psi with liquid or 3,500 psi with gas.

2 POSN / 4 PORTED MILD STEEL - ENP (EN1A / 220M07) VALVE WITH ACTUATOR TYPE "A3" FITTED
BODY MATERIAL OPTION: STAINLESS STEEL (316 / 1.4404)
SUITABLE FOR LIQUID OR GAS USE
FITTED WITH "SOFT" SEATS

4:4 Product Catalogue Page

Download PDF Datasheet

Technical Specification
Material Option (non-std) :	S = Stainless Steel (316/1.4404)
Valve Type:	6B37-A3-G
Porting/Connection Options:	P = BSP (Parallel) N = NPT (Taper)
Max. Working Pressure: Liquid/Gas :	6,000 psi / 3,500 psi
Port Size:	3/8"
Actuator:	Type: A3 (60 to 150 psi)
Soft Seated Valve:	G
Valve Seat Mat'l: Liquid/Gas :	Torlon
Seal Material:	Viton (other materials available by request)
CV Value:	0.44
Dry Weight: (kg) :	5.5
Working Temperature Range:	-10°C to +80°C

Derivative options available
	6B37N-A3-G-6K DIRECTIONAL CONTROL VALVE (6B37-A3-G) 6B37: 3/8" M. St. 2/4 directional valve., N: service ports 3/8" NPT, A3: Pilot pressure range 60 to 150 psi, G: Soft seated valve, Pilot connection: 1/8" BSPP female (standard), 6K: MWP 6,000 psi (liquid) 3,500 psi (gas), Viton seals: -10°C to +80°C, Interflow exists on changeover, Suitable for use with liquid or gas.	QTY RQD:
	6B37P-A3-G-6K DIRECTIONAL CONTROL VALVE (6B37-A3-G) 6B37: 3/8" M. St. 2/4 directional valve., P: service ports 3/8" BSPP, A3: Pilot pressure range 60 to 150 psi, G: Soft seated valve, Pilot connection: 1/8" BSPP female (standard), 6K: MWP 6,000 psi (liquid) 3,500 psi (gas), Viton seals: -10°C to +80°C, Interflow exists on changeover, Suitable for use with liquid or gas.	QTY RQD:
	S-6B37N-A3-G-6K DIRECTIONAL CONTROL VALVE (6B37-A3-G) S-6B37: 3/8" 316 St.St. 2/4 directional valve., N: service ports 3/8" NPT, G: Soft seated valve, A3: Pilot pressure range 60 to 150 psi, Pilot connection: 1/8" BSPP female (standard), 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Interflow exists on changeover, Suitable for use with liquid or gas.	QTY RQD:
	S-6B37P-A3-G-6K DIRECTIONAL CONTROL VALVE (6B37-A3-G) S-6B37: 3/8" 316 St.St. 2/4 directional valve., P: service ports 3/8" BSPP, G: Soft seated valve, A3: Pilot pressure range 60 to 150 psi, Pilot connection: 1/8" BSPP female (standard), 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Interflow exists on changeover, Suitable for use with liquid or gas.	QTY RQD:
